Description

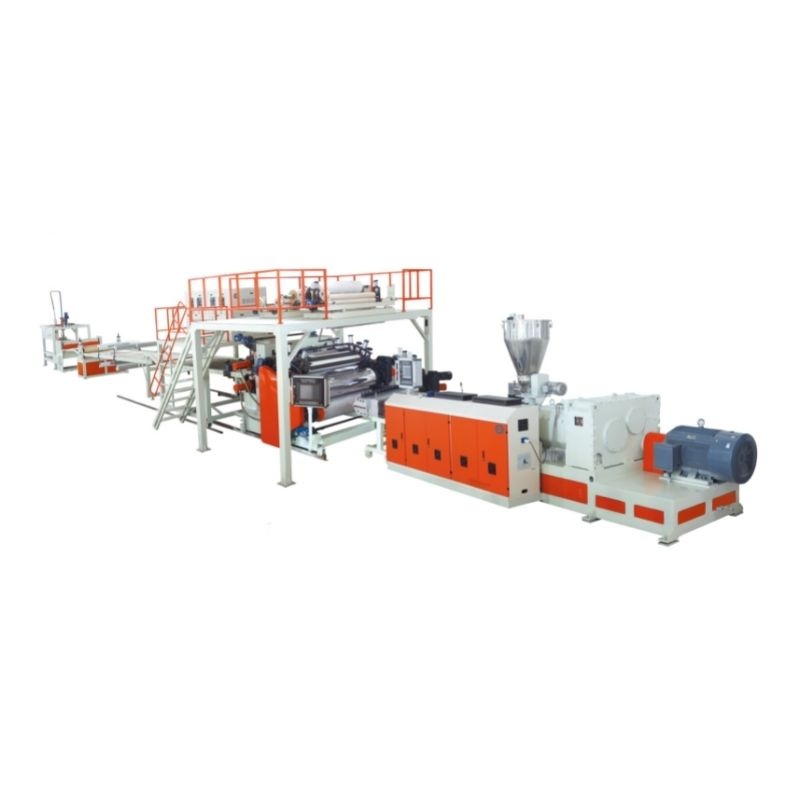

SPC flooring production line is one of the most important production process to produce SPC flooring.SPC (stone plastic composite) flooring, also known as rigid vinyl sheet, is a new type of environmental protection flooring developed based on high technology. Its raw materials are natural stone powder and PVC resin powder and additives. The extruder transforms the mixed raw materials into SPC core layer by double cone screw and die, and heats and laminates the wear-resistant layer and color film by five-roller calender, finally forming the big board of SPC flooring without using glue in the whole process.JKS SPC flooring production line provides the best guarantee and service for every customer.Parameters
Extruder |
Model |
Motor Power |
Raw Material |
Thickness |
Width |
Capacity/24hrs |
Capacity/hr |
4mm Linear Speed /min |
Conical Twin Screw Extruder |
SJSZ80 |
55KW |
PVC Powder and Calcium Carbonate |
1-10mm |
1050mm, 1350mm |
8-10T |
300-400KG |
0.6-0.8 m/min |
SJSZ92 |
110KW |
PVC Powder and Calcium Carbonate |
1-10mm |
1050mm, 1350mm |
15-18T |
650-750KG |
1.4-1.6 m/min |
|
SJSZ110 |
200KW |
PVC Powder and Calcium Carbonate |
1-10mm |
1050mm, 1350mm |
25-30T |
1050-1250KG |
2.2-2.6 m/min |
|
Parallel Twin Screw Extruder |
SJP115 |
90KW |
PVC Powder and Calcium Carbonate |
1-10mm |
1050mm, 1350mm |
20-25T |
850-1050KG |
1.8-2.2 m/min |
SJP135 |
132KW |
PVC Powder and Calcium Carbonate |
1-10mm |
1050mm, 1350mm |
35-40T |
1450-1650KG |
3.0-3.4 m/min |
Flow chart
Crusher (crushing the edge of board trimmed) → Miller (milling the scraps into powder) → Mixer (mixing the main materials and additives) → Auto loader→ conical double Screw Extruder/ parallel screw extruder → T-type die → Lamination unit → Five-roller calendar unit (EIR ON-LINE) → Cooling Bracket → Haul-off Machine → Edge Cutting → Transversal Cutter → Automatic Lifting Machine → UV coating machine → Sawing and Slotting Line → V-Groove Painting Machine → Underlay Laminating Machine → Automatic Packing Machine (Manual packaging)
Equipments
SPC Floor
