Description

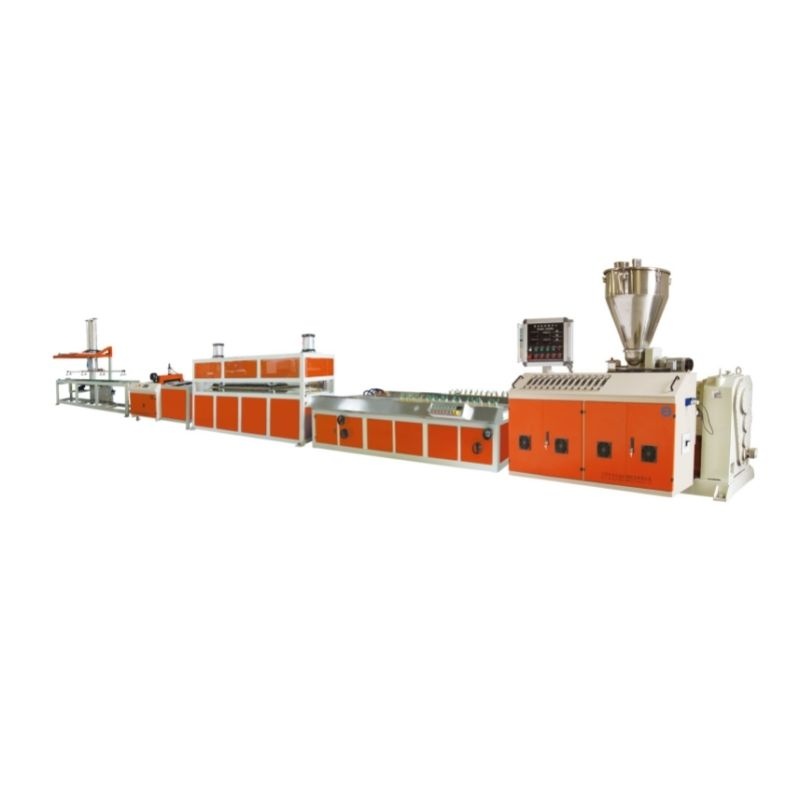

PVC Hollow Panel Extrusion Line is mainly used to produce PVC hollow panels, such as ceiling panels, wall panels, furniture panels and so on. PVC Hollow Panel Extrusion Line is composed of conical twin-screw extruder, die, vacuum calibration table, haul-off machine, cutting machine, etc. PVC Hollow Panel Extrusion Line has wide adjustment range, high precision of temperature control, easy and reliable operation.Parameters
| Extruder | Model | Motor Power | Raw Material | Width | Capacity/H |
|
Conical Twin Screw Extruder |
SJSZ51 |
18.5KW |
PVC Powder and Calcium Carbonate |
300 mm | 120 KG |
|
SJSZ55 |
22KW |
PVC Powder and Calcium Carbonate |
300 mm | 150 KG | |
| SJSZ65 | 37KW | PVC Powder and Calcium Carbonate | 600 mm | 250 KG | |
| SJSZ80 | 55KW |
PVC Powder and Calcium Carbonate |
1200 mm |
400 KG |
Flow Chart
Crusher (crushing the edge of board trimmed) → Miller (milling the scraps into powder) → Mixer (mixing the main materials and additives) → Auto loader→ conical double Screw Extruder → Extrusion Mould and Sizing Mould →
Vacuum Calibration table → Haul-off Machine → Cutting Machine → Automatic Lifting Machine
Equipments
PVC Wall Panel
