Description

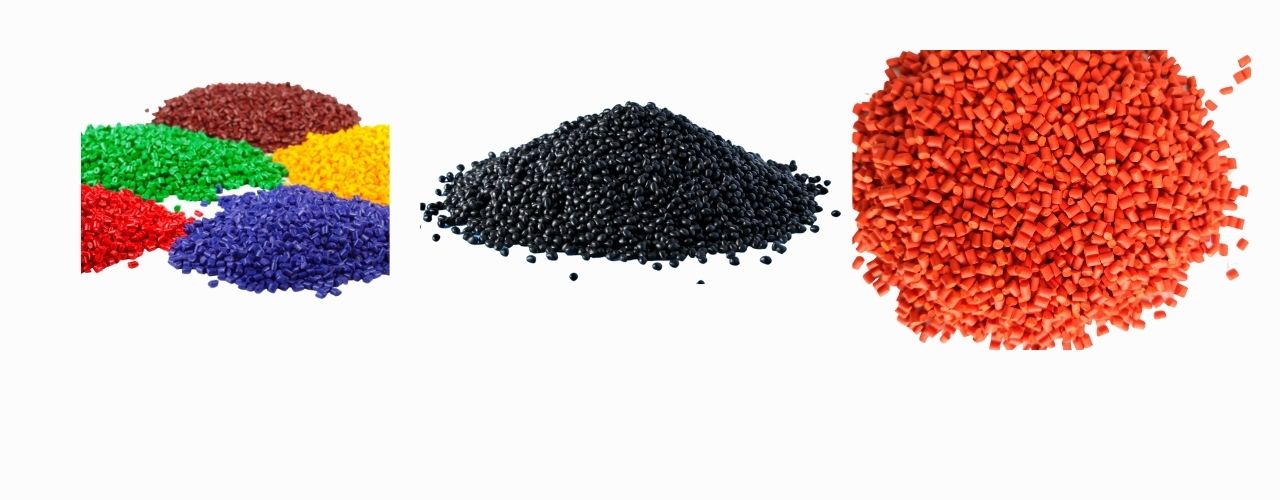

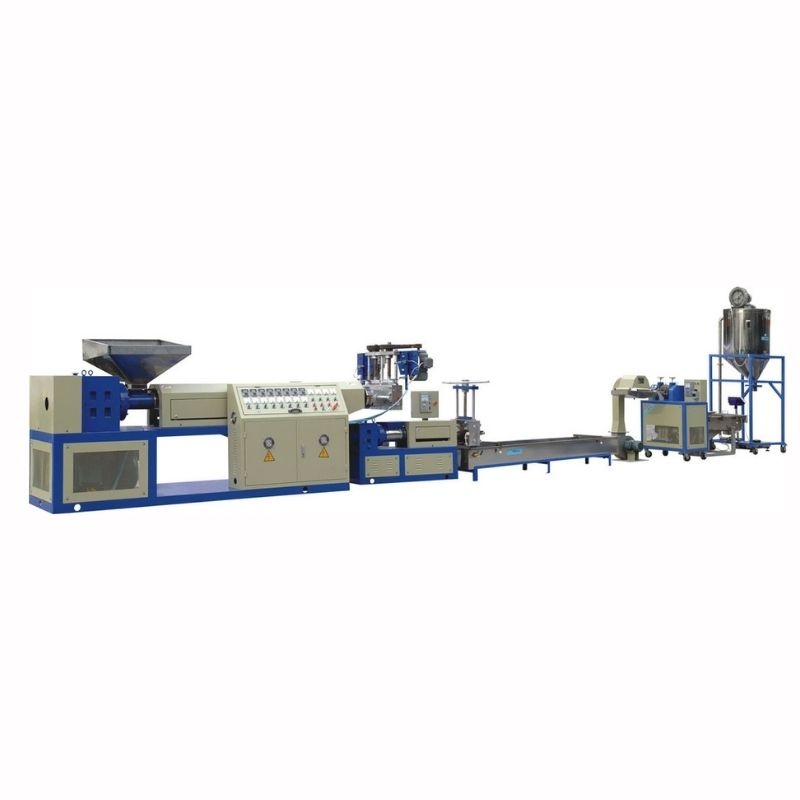

PP PE PS ABS strip pelletizer production line adopts special screw design and different configurations, which is suitable for producing recycled and color mixing pellets of PP, PE, PET, PS, ABS, PA, PVC, PC, POM, EVA, PMMA, etc. The mainframe gearbox of PP PE PS ABS strip pelletizer production line adopts high torque design to achieve low noise and smooth operation. The screw and barrel of the PP PE PS ABS pelletizer line have special surface treatment, which has the characteristics of wear resistance, good mixing effect and high output. PP PE PS ABS pelletizing machine production line of the knife type cutting machine has the characteristics of smooth rotation, uniformity, energy saving and power saving, safe operation, etc. Its special mold design makes the particles more uniform, the unique design of the cutting knife and hardening treatment makes the equipment life longer.
Parameters
Model | SJ45 | SJ65 | SJ80 | SJ100 | SJ120 | SJ150 | SJ180 |
Screw Diameter (mm) |
Φ45 |
Φ65 |
Φ80 |
Φ100 |
Φ120 |
Φ150 |
Φ180 |
Screw L/D | 30-35 |
30-35 |
30-35 |
30-35 |
30-35 |
30-35 |
30-35 |
Screw Rotation Speed(r/min) | 110 | 110 | 110 | 90 | 90 | 80 | 80 |
Main Motor Power(kw) | 7.5-15 | 30-45 | 45-75 | 75-110 | 90-132 | 185-250 | 220-315 |
Vacuum Pump Power (kw) | 2.2 | 2.2 | 4 | 4 | 4 | 5.5 | 7.5 |
Capacity (kg/h) | 10-40 | 50-120 | 70-160 | 170-280 | 250-400 | 350-550 | 450-700 |

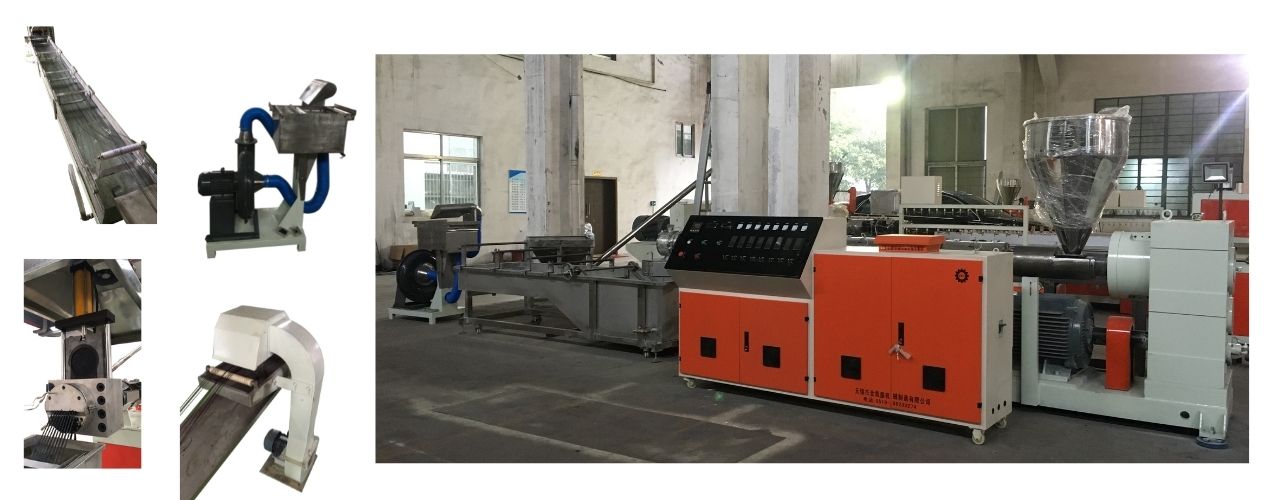

Flow Chart
Single Screw Extruder → Granulator head →Cooling water tank → Drying device → Granulator→Vibrating screen→Air blower → Aggregate device
