Description

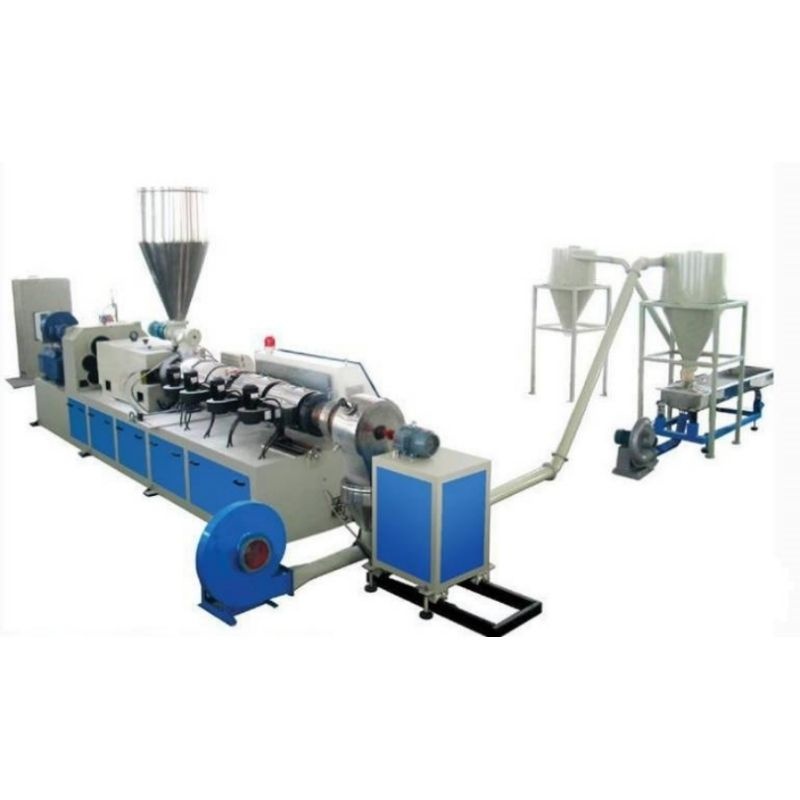

PVC WPC Wood Plastic Hot Cutting Pelletizing line is mainly used for hot air cooling production of PVC pellets, PE wood-plastic pellets and other plastic hot-cutting pellets. High thermal accuracy of die surface, high thermal efficiency, uniform and beautiful pelletizing, easy installation and movement, and complete cold air supply system
Parameters
| Extruder | Model | Motor Power | Capacity/H |
|
Conical Twin Screw Extruder |
SJSZ51 |
18.5KW | 120 KG |
|
SJSZ55 |
22KW | 150 KG | |
| SJSZ65 | 37KW | 250 KG | |
| SJSZ80 | 55KW | 400 KG | |
|
SJSZ92 |
90KW | 500-600 KG | |
| SJSZ110 | 200KW | 1000 KG |
Flow Chart
Crusher (crushing the edge of board trimmed) → Miller (milling the scraps into powder) → Mixer (mixing the main materials and additives) → Auto loader→ conical double Screw Extruder → Granulator head →
Hot cutting machine → Primary Air Supply Device→ Second Air Supply Device → Aggregate device

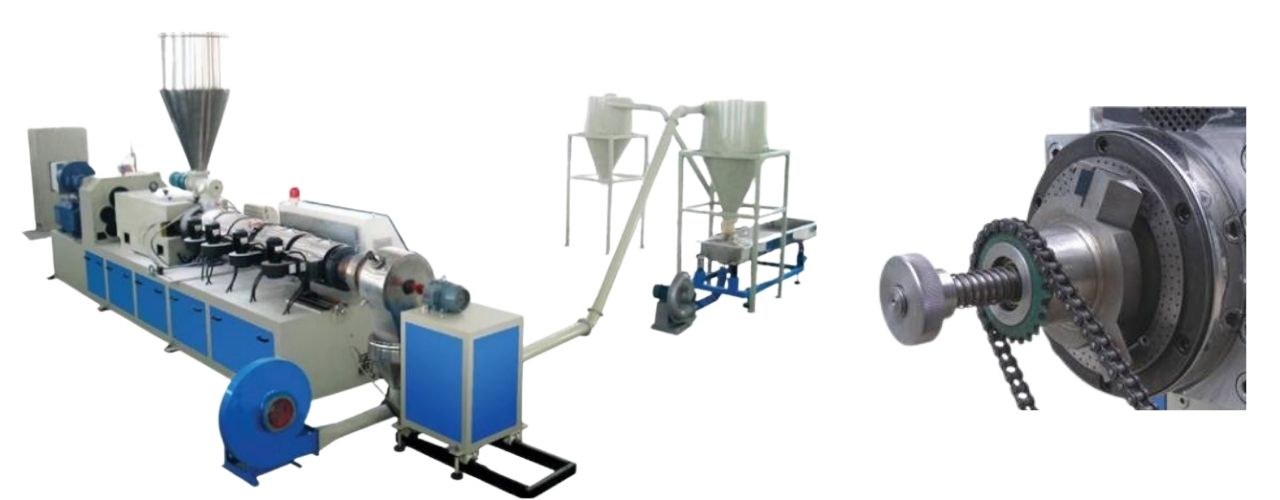

Equipments

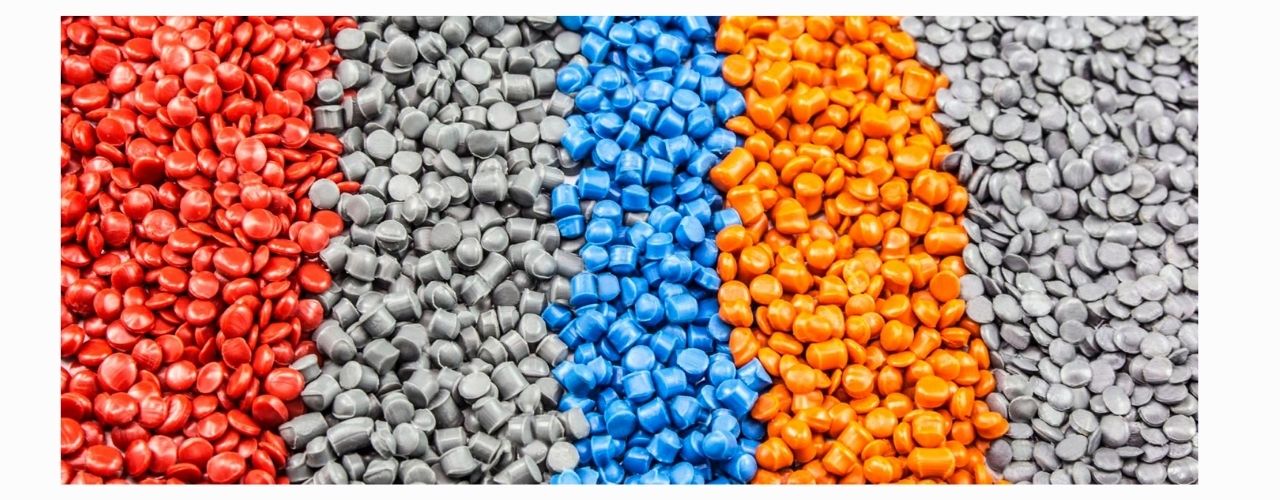

PVC Pellets
