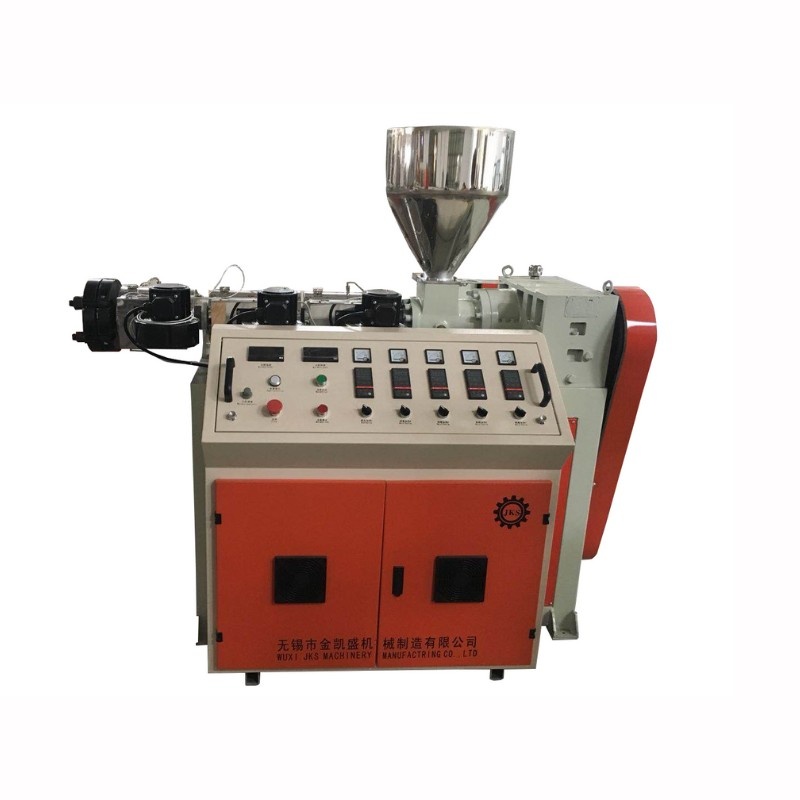

Description
Single screw extruder is mainly used for plastic processing, the extruder is designed with one screw in the barrel.JKS single screw extruder has good price and high quality among all Chinese manufacturers.
JKS single screw extruder consists of gear box, screw and barrel, Siemens AC motor, Omron temperature controller, ABB inverter and other high quality brands
JKS single screw extruder is mainly used for sheet and pipe extrusion processing, single screw extruder can be used to produce PE sheet, PP sheet, PE pipe, PP-R pipe, HDPE corrugated pipes and plastic pellets.
You need to let us know what size plastic sheet or pipe you need, what is your raw material and what is the capacity per hour, then our technical department will design the extruder and extrusion line drawing to you, and you will know how long the whole plastic extrusion line is and how many square meters of plant you need.
JKS also provides training and installation for our customers after purchasing our machines, and we will also provide our customers with operating instructions.
Parameters
| Model | SJ20 | SJ30 | SJ45 | SJ65 | SJ90 | SJ100 | SJ120 | SJ150 |
| Screw Diameter (mm) |
Φ20 |
Φ30 |
Φ45 |
Φ65 |
Φ90 |
Φ100 |
Φ120 |
Φ150 |
| Screw L/D | 25-35 |
25-35 |
25-35 |
25-35 |
25-35 |
25-35 |
25-35 |
25-35 |
| Screw Rotation Speed(r/min) | 60 | 70 | 90 | 30-90 | 20-90 | 30-75 | 70 | 60 |
| Main Motor Power(kw) | 3 | 4 | 4-11 | 11-45 | 30-75 | 45-110 | 55-90 | 75-110 |
| Heating Zone | 3 | 3 | 3-4 | 4-6 | 5-8 | 7-10 | 6 | 6 |
| Capacity (kg/h) | 3 | 8 | 5-25 | 20-90 | 40-200 | 50-270 | 180 | 250 |
Equipments
