Description
Plastic marble profiles have the advantages of lower cost, lighter weight, more colors and designs, and longer service life compared to spc profiles, PVC.

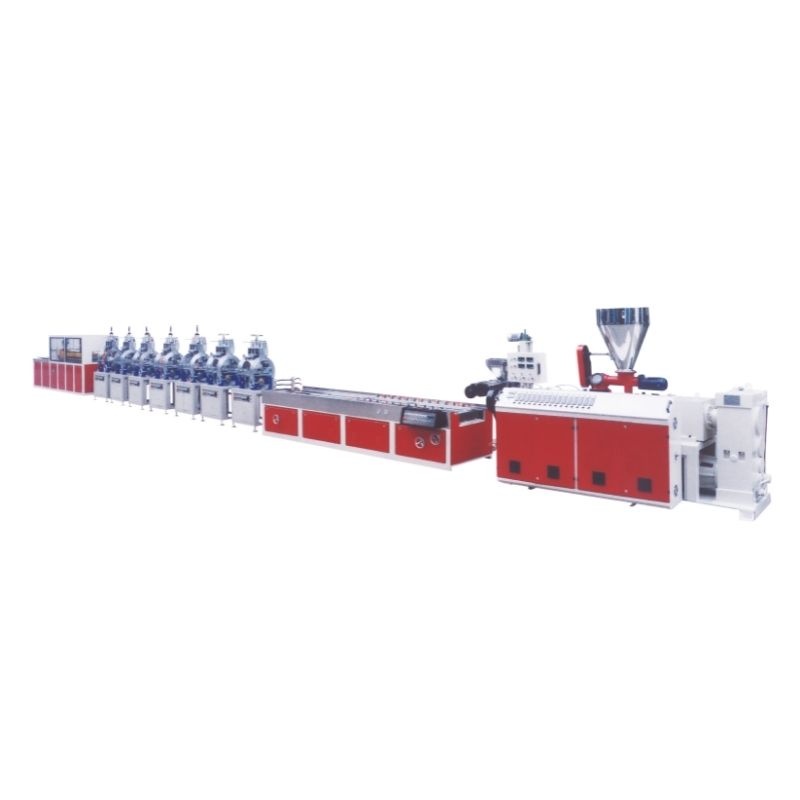

JKS PVC marble profile extrusion line has the same downstream extrusion equipment process as ps profile extrusion line, using the extruder is different, our PVC marble profile extrusion line includes extruder, extrusion die, extrusion tractor, hot stamping machine, extrusion cutter and extrusion stacker, our machines have been sold to many countries and we hope to find agents all over the world
Parameters
Extruder | Model | Motor Power | Raw Material | Width | Capacity/H |
Conical Twin Screw Extruder |
SJSZ51 |
18.5KW |
PVC Powder and Calcium Carbonate |
300 mm | 120 KG |
SJSZ55 |
22KW |
PVC Powder and Calcium Carbonate |
300 mm | 150 KG | |
SJSZ65 | 37KW | PVC Powder and Calcium Carbonate | 600 mm | 250 KG | |
SJSZ80 | 55KW |
PVC Powder and Calcium Carbonate |
1200 mm |
400 KG |
Flow Chart
Crusher (crushing the edge of board trimmed) → Miller (milling the scraps into powder) → Mixer (mixing the main materials and additives) → Auto loader→ conical double Screw Extruder → Extrusion Mould and Sizing Mould →
Vacuum Calibration table → Haul-off Machine →Hot Stamping Machine →Cutting Machine → Stacker

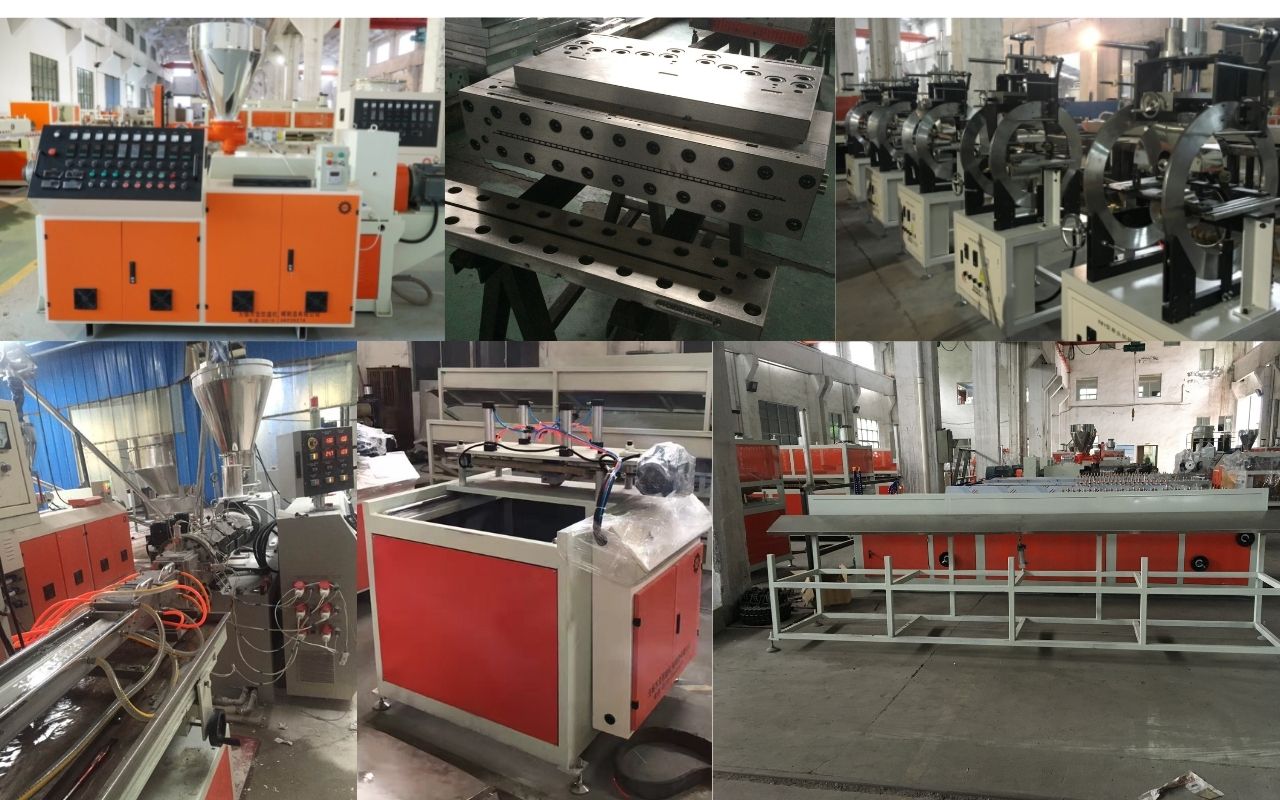

Equipments

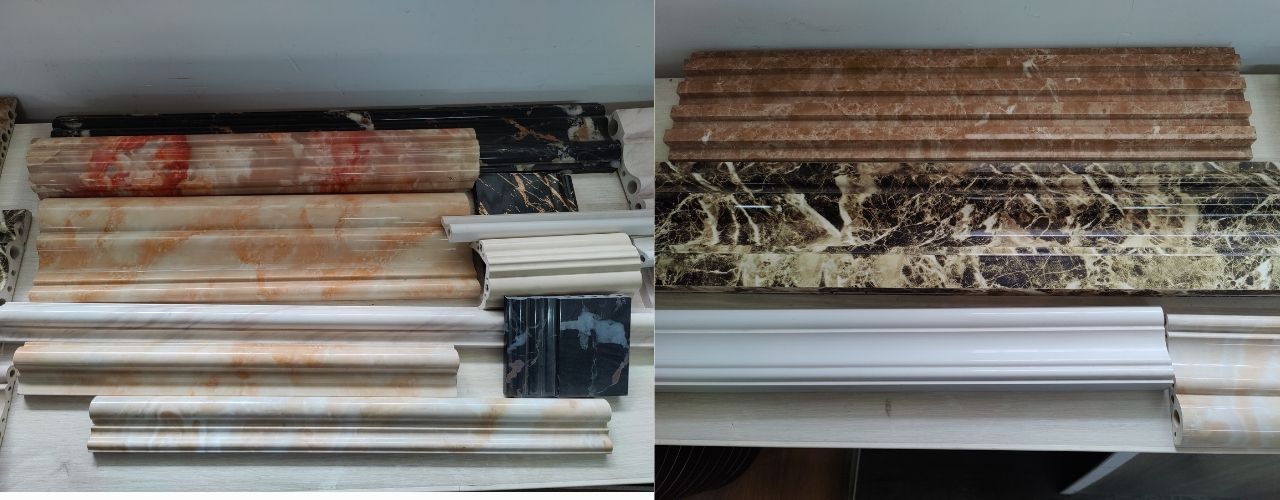

PVC Marble Profiles
