Description

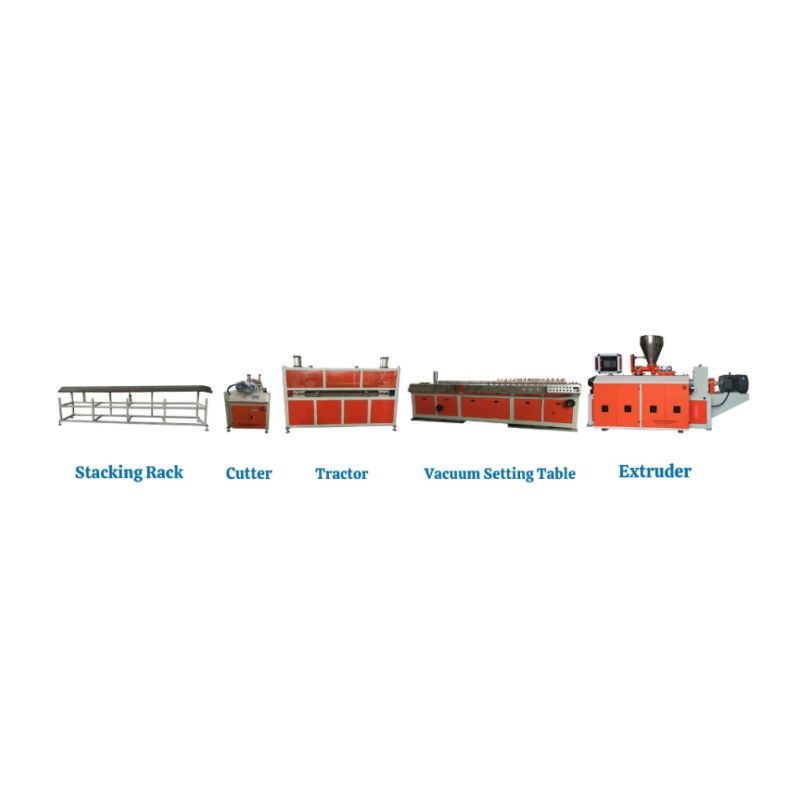

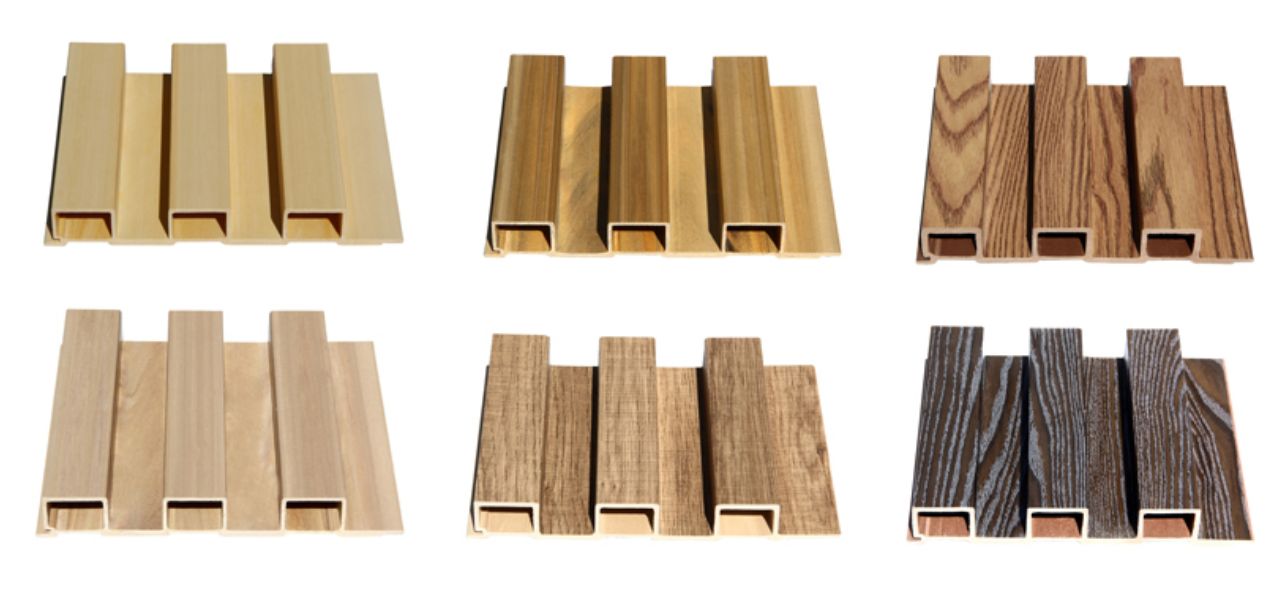

WPC Fluted Panel Production Line is mainly used to produce WPC Fluted Panel, Mainly used for wall decoration. WPC Fluted Panel Production Line is composed of conical twin-screw extruder, die, vacuum calibration table, haul-off machine, cutting machine, etc. WPC Fluted Panel Production Line has wide adjustment range, high precision of temperature control, easy and reliable operation.

Parameters

Extruder	Model	Motor Power	Raw Material	Width	Capacity/H
Conical Twin Screw Extruder	SJSZ51	18.5KW	PVC Powder and Calcium Carbonate	300 mm	120 KG
	SJSZ55	22KW	PVC Powder and Calcium Carbonate	300 mm	150 KG
	SJSZ65	37KW	PVC Powder and Calcium Carbonate	600 mm	250 KG
	SJSZ80	55KW	PVC Powder and Calcium Carbonate	1200 mm	400 KG

Flow Chart

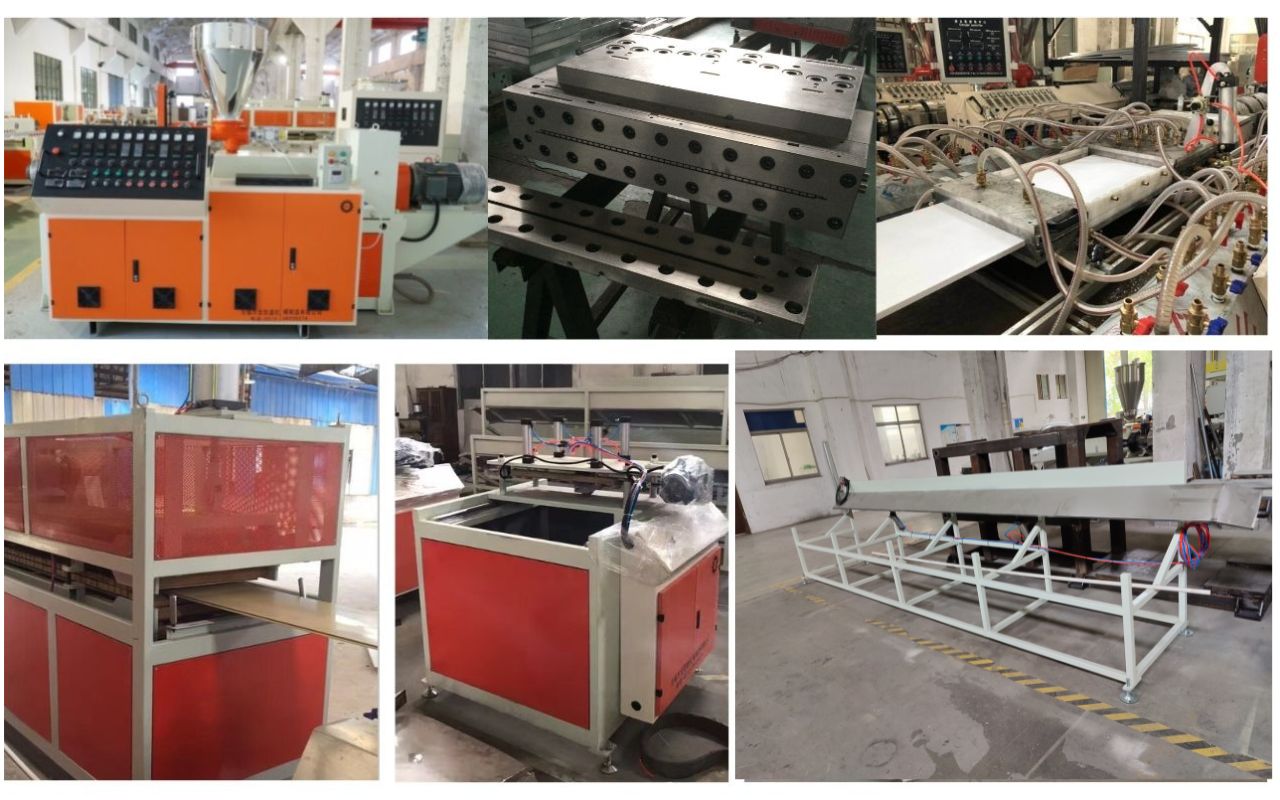

Crusher (crushing the edge of board trimmed) → Miller (milling the scraps into powder) → Mixer (mixing the main materials and additives) → Auto loader→ conical double Screw Extruder → Extrusion Mould and Sizing Mould →
Vacuum Calibration table → Haul-off Machine → Cutting Machine →Stacker
